Гидравлический насос Bobcat 6685694 excavator Bobcat E43

Гидравлический насос Bobcat 6685694

BOBCAT 7001430 Hydraulic Axial Piston Pump

Bobcat E435 excavator

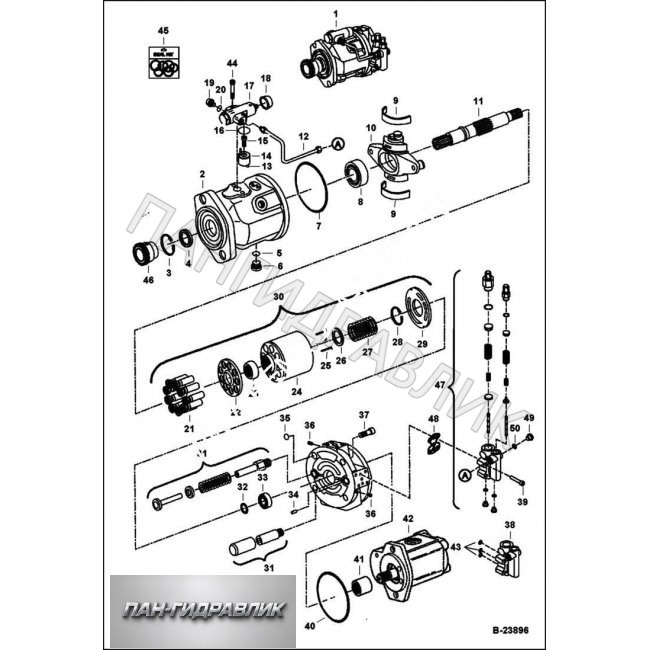

1 7001430 PUMP, HYD - assy - W/gear pump - Was 6685694 - A

2 HOUSING NSS - order Ref. 1

3 6691458 RING Was 6686754 - D

4 6672231 SEAL Was 6686751 - A

5 6686757 PLUG W/Ref. 6

6 6671787 O-RING

7 6686752 O-RING

8 6672228 BEARING Was 6686749 - A

9 BEARING NSS - order Ref. 1

10 6672224 CRADLE ASSY Was 6686746 - A

11 6688517 SHAFT Was 6686747 - B

12 6686776 PIPE includes fittings

13 6676393 PIN Was 6686773 - A

14 6676391 CARRIER Was 6686769 - A

15 6686771 SCREW, SOCKET

16 6686770 O-RING

17 6686768 VALVE does not include spring seat - Also Order 6679148 spring & 6679149 spring

17 6679148 SPRING

17 6679149 SPRING

17 6691344 O-RING

18 6686775 CAP, INSULATION

19 6686767 PLUG

20 O-RING

21 PISTON NSS - order Ref. 30

22 PLATE NSS - order Ref. 30

23 RETAINER NSS - ball - order Ref. 30

24 BARREL NSS - order Ref. 30

25 PIN NSS - order Ref. 30

26 CLIP NSS - order Ref. 30

27 SPRING NSS - order Ref. 30

28 SNAP RING NSS - order Ref. 30

29 6672245 PLATE Was 6686761 - A

30 6688519 ROTATING Ref. 21 - 29

31 6688520 CONTROL Was 6686744 - A

32 6691449 SHIM adjusting - Was 6686748 - D

33 6672229 BEARING Was 6686750 - A

34 6672235 DOWEL PIN Was 6686759 - A

35 O-RING NSS

36 PLUG NSS

37 SCREW, SOCKET NLA - Order 6692552 screw - Was 6686755 - A

38 CONTROL See Illustration HYDRAULIC PISTON PUMP/ B15928 - Use W/ O-rings

38 6686767 PLUG goes in the X port - Was 6692557 - D

38 PLUG NSS - goes behind each spool - metric (70 or 90 durometer)

39 6672255 BOLT Was 6686766 - D

40 6688920 ORING

41 6688921 COUPLING

42 6688093 PUMP See Illustration GEAR PUMP/ MS2060

43 6686765 O-RING

44 6692558 SCREW

45 6686695 SEAL KIT seal does not include Ref. 40

46 COUPLER See Illustration HYDRAULIC CIRCUITRY/ PE2634

47 7001950 CONTROL Use W/gasket - must replace gasket each time controller is removed

48 6691519 GASKET one time use - must replace when controller is removed

49 6691491 PLUG W/Ref. 50
