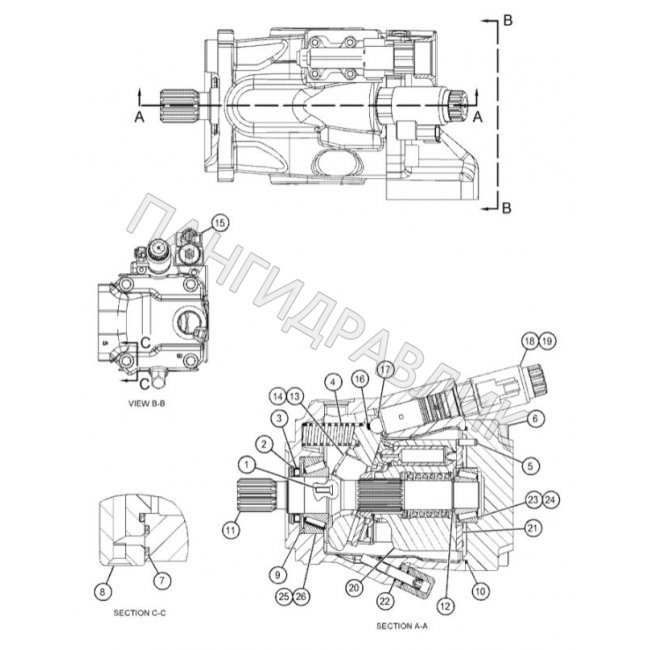

Гидравлический насос CAT 398-7480 CATERPILLAR 420F2

Гидравлический насос CAT 398-7480

CATERPILLAR 3987480 PUMP GP-PISTON -HYDRAULIC

S/N HWD1-UP PART OF 431-6731 PUMP & MTG GP-HYDRAULIC ALSO AN ATTACHMENT

BACKHOE LOADER CATERPILLAR 420F2

1. 6R-7943 SCREW (M5X0.8X15-MM)
2. 180-6213 RING-RETAINING
3. 139-2840 SEAL-SHAFT
4. 386-6610 SPRING
5. 9X-8979 DOWEL
6. 8T-2503 BOLT-SOCKET HEAD (M14X2X35-MM)
7. 168-3504 SEAL
8. 120-4394 PLUG-BREAK OFF
9. 190-6507 RING-STOP
10. 192-7470 SEAL-O-RING
11. 455-7981 SHAFT
12. 168-2203 SHIM-SHAFT (3-MM THK)
13. 455-7928 BEARING-CRADLE
14. 455-7930 BEARING-CRADLE
15. 398-7457 VALVE GP-PUMP CONTROL (FLOW COMPENSATOR)
16. 379-5187 SPRING
17. 333-7840 STOP
18. 341-7630 VALVE-PUMP CONTROL (FLOW COMPENSATOR)
19. 455-7936 STOP
20. 455-7938 ROTATING GP
21. 279-2491 PLATE-PORT
22. 113-6303 SEAL-O-RING
23. 9W-2110 CUP-TAPERED ROLLER
24. 9W-2109 CONE-BEARING
25. 8J-0412 CUP-BEARING
26. 3P-1210 CONE-BEARING
